Industrial waste industry facility, North Island, NZ

The client operates in the waste industry and needed a new industrial building on a difficult suburban site in the North Island where heavy trucks, processing equipment and specialist services all had to coexist within tight boundaries. Marsco Architecture was engaged to design the building and to help shape the operational workflows so the facility could function safely and efficiently from day one.

Truck access was the starting constraint. Every turning radius for the site's vehicle fleet was mapped in plan before the building footprint was fixed. User error margins were added to those paths so that normal driver variation would not bring trucks into conflict with structure, services or pedestrian zones. Only after those paths were verified did the final building position settle.

The client brought serious in-house engineering capability to the table and wanted a facility that pushed beyond standard industrial shed thinking for their sector. Health and safety were not treated as a compliance checkbox. The company genuinely cared about protecting staff, and that shaped how Marsco approached layout, access control and the relationship between building form and daily operating procedure.

The building had to minimise temptation for workers to step outside standard operating procedure. Where waste cannot reach an area, people cannot be hurt trying to clean waste from that area. That principle ran through circulation, equipment placement and the physical separation of high-risk zones from routine work areas.

The most significant spatial decision was to treat truck turning circles as design generators, not leftover space. Heavy vehicles need large swept paths, but the centre of a turning circle often goes unused even when trailer wheels cut across on the arc. On a tight suburban site, that dead space became usable protected area for critical equipment that must stay isolated from vehicle movement.

Biofilter beds for odour control were placed within the unused centre of the mapped turning radii. Under the right turning geometry, equipment sitting in that zone sits outside the path of trucks and trailers. Dead space became safe space for specialist services plant that would otherwise compete for scarce ground area elsewhere on the plot.

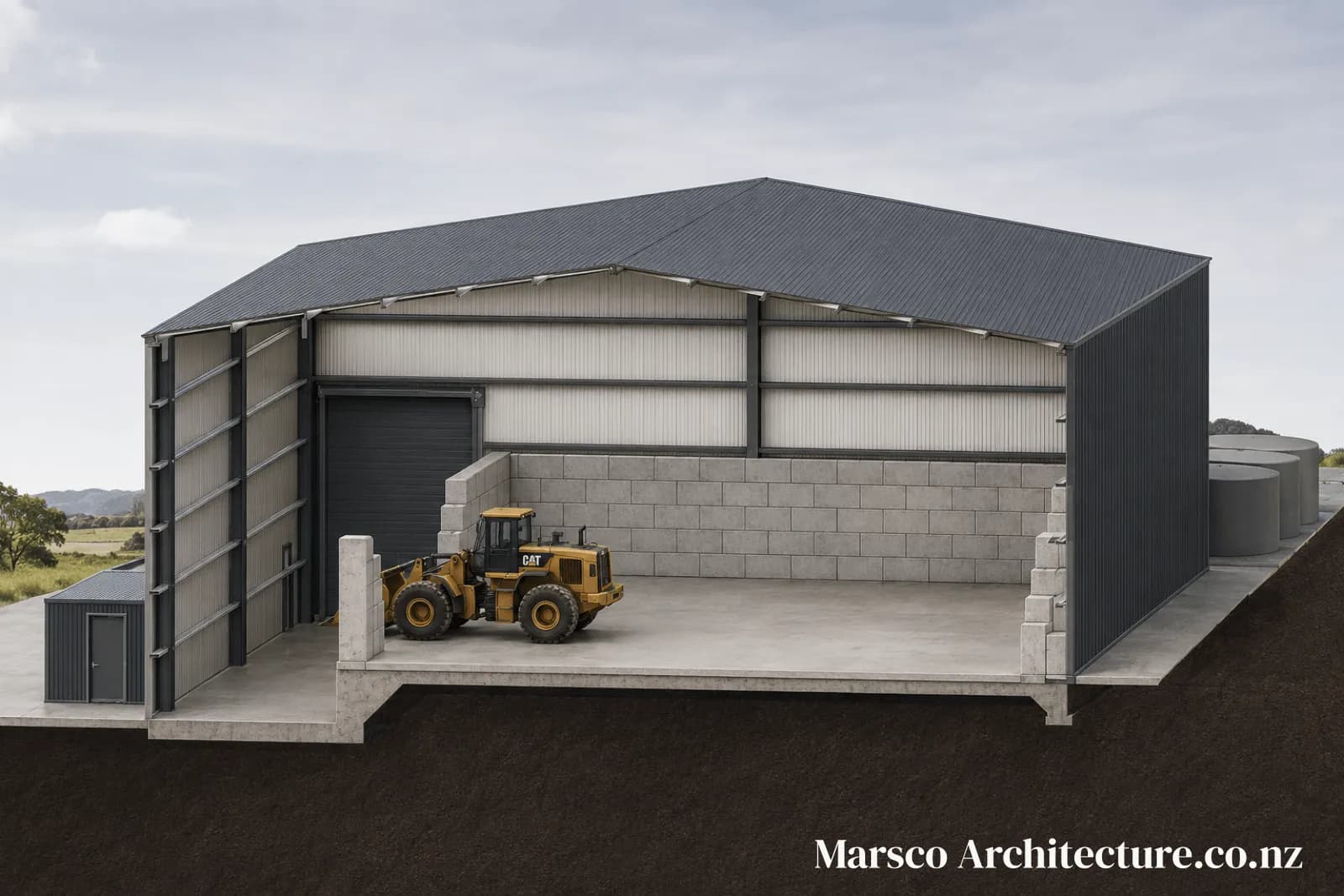

The steep site slope opened a design opportunity that flat land would not have offered. Rather than fighting the grade with extensive cut-and-fill, the building was configured as a two-level industrial facility that worked with the topography. Groundworks are widely regarded as expensive throughout building, so reducing earthworks while capitalising on the slope delivered a functional split-level layout at lower site cost than a conventional single-level alternative on the same land.

Marsco worked alongside the client's in-house engineering expert throughout, not in parallel silos. Building form, equipment locations and process flows were developed together so structural, operational and services decisions stayed aligned. The result is a facility that may read as a standard industrial building in early renders but carries layered complexity in how it handles vehicles, waste streams, filtration and long-term maintainability.

Sacrificial building components were designed into the facility from the outset. Parts of the building that will wear, corrode or need replacement over the facility's life were identified early, with systems and access built in so those elements can be swapped without dismantling unrelated structure. The design was planned for decades of operation, not just for opening day.

The building envelope and structure were specified for an industrial waste environment where durability, maintainability and resistance to harsh operating conditions matter more than architectural display. Materials and fixings were chosen with the understanding that certain components would be replaced repeatedly over the building's life and needed to be reachable without major disruption.

Biofilter beds for odour control, formed a key services component within the site layout. Locating them inside protected turning-circle dead space kept filtration infrastructure away from vehicle paths while using land that would otherwise sit empty. That integration required close coordination between site circulation geometry, services sizing and the building's ground-level structure.

The two-level configuration tied structure, floor levels and external grades together. Retaining, drainage and building entry levels were resolved as one system rather than as separate civil and architectural problems. Working with the slope meant less imported fill and less cut, which reduced cost and programme risk on a site where groundworks would otherwise have dominated early budgets.

Services routes, equipment bases and future replacement zones were documented so maintenance teams could identify sacrificial elements and access paths before problems appear on site. That level of lifecycle thinking is uncommon on industrial projects where first-cost often wins over whole-of-life operability.

The primary challenge was density. Suburban industrial sites rarely offer the clearance that waste operations would prefer. Every square metre had to earn its place. Truck paths, building footprint, biofilter zones, services easements and safety separation all competed for the same ground. Mapping turning circles with user error margins was essential before any other design decision could be trusted.

Integrating biofilter beds inside turning-circle dead space, required precise geometry. The protected zone only works if vehicle paths stay where they were modelled. Marsco's layout had to remain robust to the client's fleet configuration and to reasonable variation in how drivers execute turns on site.

Designing for operational discipline added another layer. Risk in waste handling often increases when staff take shortcuts because the built environment makes the safe route harder than the unsafe one. Circulation, equipment placement and access control were reviewed so the standard procedure was also the easiest procedure wherever practicable.

Collaborating with a capable in-house engineering team raised the bar for coordination. The client's expert understood their process deeply. Marsco's role as lead designer was to translate that operational knowledge into building form, structure and services layout that could be built and maintained. That partnership worked because both sides treated health and safety as a design input, not a late-stage review item.

Suburban adjacency added a stakeholder dimension beyond engineering and site geometry. Key next-door neighbours were brought into the design process early and were on board with the proposal. Getting those neighbours aligned from the start played a large part in making a building of this intensity achievable on a plot where every boundary and setback mattered.

The steep slope was both opportunity and constraint. Split-level industrial buildings demand careful attention to level changes, fall protection, drainage and how trucks and plant interact across grades. The design had to make the slope an asset without creating new hazards at floor transitions or external yards.

Marsco delivered architectural design and workflow coordination for a cutting-edge waste industry facility on a site where conventional layout logic would have wasted land or inflated groundworks cost. The two-level building works with the slope, truck turning geometry unlocks protected space for biofilter beds, and sacrificial components are built into the design for long-term replacement.

The client has already engaged Marsco again on further work, which reflects the value of applied design knowledge that extends beyond drawings into how a facility actually runs. On complex industrial sites, that combination of spatial design, operational thinking and buildability is what turns a constrained plot into a working asset.
