Industrial insulated panel laboratory services building buildability, New Zealand

A major New Zealand insulated panel supplier brought Marsco Architecture in to review a three-storey services building for a high-containment laboratory facility and to prepare shop drawings their installation team could build from. Marsco did not design the building and was not the building consent applicant. The supplier needed someone who could read the full Revit model, understand how insulated panels actually go together on site, and fix a coordination failure that had already reached steel fabrication and erection.

The building was a services facility supporting laboratory operations where interior environments had to be controlled, sealed and cleanable to a very high standard. Insulated metal panels formed both the internal wall and ceiling lining and the airtight, temperature-controlled envelope. They were not a finish layer applied after structure. They were structural lining elements that had to sit in exact positions and perform both envelope and hygiene functions simultaneously.

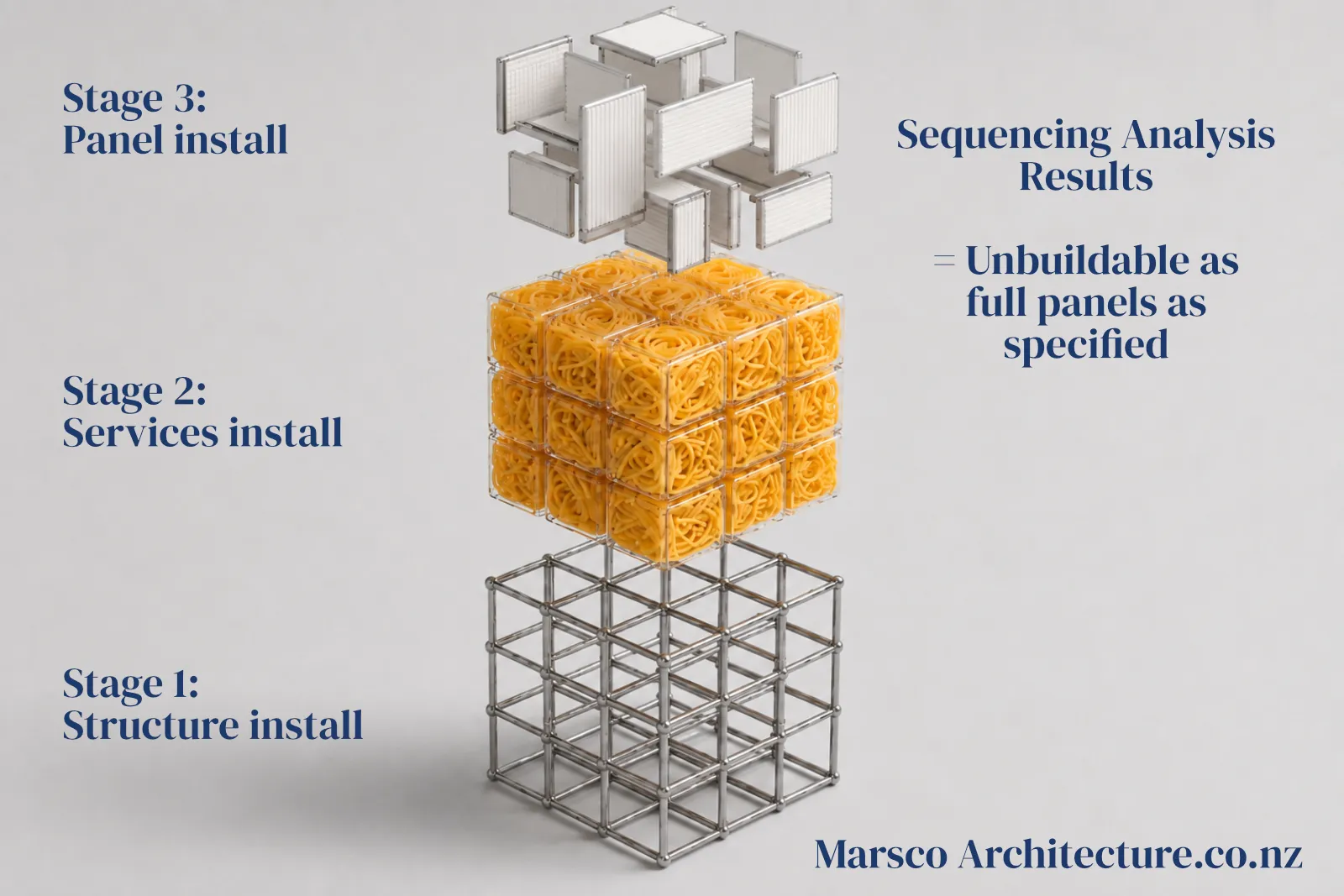

The original design team had moved from concept to construction documentation without a proper developed design stage for panel buildability. Drawings showed panels installed after the complete steel frame was in place, as if each panel could slide into a clear bay like a puzzle piece. On paper that looked coherent. In three dimensions it was not buildable. Marsco's brief was to find a construction sequence that worked panel by panel and level by level, then document it clearly enough for installers and the structural engineer to act on.

The first decision was to treat the problem as a sequencing exercise in three dimensions, not as a drawing tidy-up. Marsco worked directly with the panel supplier's installers, sitting together over the Revit model to walk through every panel location on all three storeys. Each panel needed a defined entry direction, a clear path through the steel frame, and a confirmed fixing sequence before the next panel could follow.

Where a full-height panel could not reach its final position because cross-bracing or primary beams blocked the path, Marsco identified whether steel members could be temporarily removed and reinstalled after the panel landed, or whether the panel had to be split. Splitting insulated panels is a last resort because the panel system's strength comes from the bonded assembly of outer skins and internal core working together. Cutting a panel destroys that composite action. Riveting outer skins back together does not restore the insulated core's structural contribution.

When panels had to be subdivided, Marsco worked with the structural engineer to identify every panel which needed recalculated loadings for each fragment. The engineering solutions involved unique bracket fixings to account for the loss of full-panel structural capacity. Every cut piece required its own engineered solution. Generic supplier standard details were not sufficient for a building where panel positions were tied to containment performance.

Marsco used the same Revit environment as the wider project team, producing three-dimensional sectional views and walk-through visuals so non-drawing specialists could grasp the problem and the proposed resolution quickly. On complex industrial work, a 3D section often communicates faster than a stack of plans, especially when explaining why a sequence that looked fine in elevation cannot work in reality.

The envelope was factory-made insulated metal panel, used as large-format wall and ceiling elements spanning floor to ceiling or full bay widths. Panels were colour-coded by function in coordination models: vertical wall panels, horizontal ceiling panels and internal partition panels each had distinct roles in the airtight, cleanable lining system.

The structural frame was dense structural steel, far heavier than a typical commercial grid. At every level, primary beams spanned the full building width, with secondary and tertiary members stacked between them, plus diagonal cross-bracing in wall planes and within floor zones. The frame was designed for extraordinary stiffness because large laboratory tanks holding live biological cultures sat on structure that could not deflect, vibrate or move differentially between floors. Normal buildings tolerate small movement. This one could not.

That stiffness philosophy drove the buildability conflict. Cross-bracing members that stiffen the frame against vibration occupy exactly the gaps a panel installer needs to thread a full-size panel through the structure. The frame's performance requirements and the panel system's installation logic were in direct opposition until someone mapped both systems together in sequence.

Specialised bracket fixings were developed where panel subdivision was unavoidable, each sized and located to transfer loads the original full-panel design would have carried through its composite core. Shop drawings documented panel types, cut lines, bracket positions, temporary steel removal notes and reinstallation sequences so the supplier's factory and site teams had a single coordinated source of truth.

The core challenge was geometric, not cosmetic. There was no single construction sequence where steel went up first and panels followed cleanly afterwards. Diagonal bracing filled the access paths. Beams stacked four or five layers deep within each floor zone, so what looked like one floor depth in plan was a dense three-dimensional web of intersecting members. Every panel installation had to be tested against that web before it could be approved.

Steel was already committed when the problem surfaced. Fabrication and erection were underway or imminent, so the resolution had to work around existing steel rather than restart the structural design. That constraint ruled out simple fixes like reordering a few members on paper. Changes had to be surgical, coordinated with the structural engineer, and sequenced so temporary removals did not compromise frame stability during installation.

Pharmaceutical-grade containment requirements added another layer. Panels could not be replaced with a simpler lining system. They had to remain in their designed positions, performing as the sealed, cleanable, temperature-controlled boundary. Any panel subdivision, bracket fix or sequence change had to preserve that performance intent, not just achieve a weathertight fit.

Marsco operated under confidentiality constraints throughout. The end client, exact site location and specific laboratory operator cannot be published. That limits what can be shown photographically but does not reduce the technical depth of the work. The coordination model Marsco produced represented the point at which every panel, every steel member and every construction step had been mapped clearly enough to hand back to the build team and say: this is where our challenges are.

Communication across disciplines was as demanding as the geometry. Installers, structural engineers and the panel supplier needed to share one understanding of sequence, not three parallel interpretations from separate drawing sets. Revit-based review sessions and three-dimensional sections were the primary tool for aligning that understanding before anything changed on site.

Marsco delivered a buildable option to get this project back on track, resolving the sequencing impasse on a building the original documentation could not be built from as drawn. Three-dimensional coordination modelling helped to communicate missed and unresolved buildability problems.

The engagement demonstrates where developed-design-stage panel knowledge prevents costly site paralysis. When architectural documentation skips the stage where buildability is tested against real panel sizes, real steel density and real installation access, the problem does not stay on paper. It arrives on site during erection, often after steel is already ordered. Marsco is frequently brought in at that point by panel suppliers who need the problem solved in sequence, not debated in meetings.
